Comparison of pre-bent titanium mesh versus polyethylene implants in patient specific orbital reconstructions
© Kozakiewicz and Szymor; licensee BioMed Central Ltd. 2013
Received: 8 July 2013
Accepted: 24 October 2013
Published: 29 October 2013
Computerized tomography DICOM file can be relatively easily transformed to a virtual 3D model. With the help of additional software we are able to create the mirrored model of an undamaged orbit and on this basis produce an individual implant for the patient Authors decided to apply implants with any thickness, which are authors own invention to obtain volumetric support and more stable orbital wall reconstruction outcome. Material of choice was ultra-high molecular weight polyethylene (UHMWPE).
The aim of this study was to present and compare functional results of individual reconstructions of orbital wall using either titanium mesh or ultra-high molecular weight polyethylene.
Materials and methods
57 consecutive patients affected by orbital wall fracture (46 males, 11 females, mean age 34±14 year) were treated in Department of Maxillofacial Surgery from 2010 to 2012. In the first group we used patient specific treatment by titanium mesh shaped on a 3D printed model of a mirrored intact orbit (37 orbits) or by individually manufactured UHMW-PE implantby CAM milling in second group (20 orbits). All of these patients were subjected to preoperative helical computerized tomography and consultation of an ophthalmologist (including binocular single vision loss test - BSVL). Further on, patients were operated under general anaesthesia using transconjuctival approach. BSVL was again evaluated post-operationally in 1 month and 6 months later.
Functional treatment results (BSVL) for both groups were similar in 1 month as well as 6 months post operational time. There was no statistically significant difference between these two groups.
This study of 6 months functional result assessment of pre-bent individual implants and CNC milled ultra-high molecular weight polyethylene of the orbital wall has shown it to be a predictable reconstruction method. Individually shaped UHMWPE seems to be as good as pre-bent titanium mesh.
KeywordsFacial skeleton injuries Individual implants Titanium mesh Ultrahigh molecular weight polyethylene Diplopia
Orbital wall fractures are quite common consequence of maxillofacial trauma. 3 -32%  of all maxillofacial fractures are present within the orbit. Although aetiology of facial trauma varies in different countries the most common causes worldwide are assault, traffic accident, sports and fall. Common complications of such fractures are diplopia and enophtalmos [3, 4].
In 2000s individual reconstructions in maxillofacial surgery begun to be more popular [5–12]. Technical equipment and software is more available nowadays. Computerized tomography DICOM file can be relatively easily transformed to a virtual model [8, 13]. With the help of additional software the mirrored model of an undamaged orbit can be created and exported as a .stl file for external 3D printer. On such printed model it is possible to bend titanium mesh preoperatively. This allows to reduce operating time, improve safety [13, 14] and achieve much better accuracy of orbital reconstruction [9, 10, 15]. However, sometimes it is observed that implants may become misplaced or deformed, especially in cases of severe damaged orbits and old cases where thin titanium mesh cannot be efficiently supported. Therefore authors decided to use implants of authors own invention with any desired thickness to obtain volumetric support and more stable orbital wall reconstruction outcome . Material of choice was ultra-high molecular weight polyethylene (UHMW-PE) commonly used in medicine [17–19] especially as acetabulum replacement in total hip prosthesis. An initial interest in UHMWE-PE to use it in maxillofacial surgery is dated at 1999 . The problem of shrinkage of the polymer during its processing led to rejection of this material from maxillofacial reconstructions at that time. To eliminate this problem computerized numerical control milling from earlier prepared solid bar of UHMW-PE was suggested. This led to the first successful human application of solid patient specific orbital wall implant made from UHMWE-PE at 2012 .
The objective of this study was to present and compare functional results of individual reconstructions of orbital wall using either titanium mesh or ultra-high molecular weight polyethylene.
Material and methods
The Medical University of Lodz Ethic Committee approval was obtained for this study [RNN/266/11/KB, RNN/141/12/KB, RNN/267/11/KB]. Participants provided their written informed consent in a form accepted by Medical University of Lodz Ethic Committee to participate in this study. 57 consecutive patients affected by orbital wall fracture (46 males, 11 females, mean age 34±14 year) were treated in Department of Maxillofacial Surgery from 2010 to 2012. Inclusion criteria was unilateral side injury i.e. 57 reconstructions were performed. In the first group pre-bent titanium mesh (37 orbits) was used and in the second group computerized numerical control milled ultrahigh molecular weight polyethylene  implants (20 orbits) were used. Patients to both groups were assigned randomly.
Specific to implant type patient data
The most common cause of the trauma was assault (31 cases), followed by traffic accident (19 cases) and fall (7 cases) (Table 1).

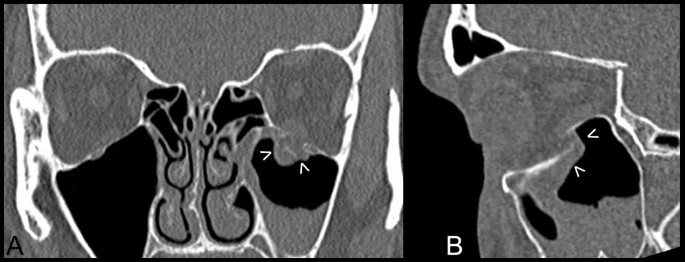

All patients were subjected to preoperative helical computerized tomography by Multi-slice VCT, GE Lightspeed 64-slice scanner using 0.6 mm slice thickness, a gantry tilt of 0° and with a matrix of 512 × 512 pixels, 120 kVp, 115 mAs. The types of injury were then classified by an orbital destruction intensity (ODI) scale  to compare the distribution of injury intensity in both groups (Table 1).
Binocular single vision investigation (Figure 2C) was performed using Medmont M600W Automated Perimeter (Medmont Pty Ltd., Nunawading Victoria, Australia) . The patient was asked to decide whether a stimulus seen on perimeter globe appears as a single or a double spot. Pattern of 21 cells was tested, extending 30° superiorly and 40° inferiorly and the result was shown as a percentage of a vision field affected by diplopia (BSVL).
UHMW-PE implants were designed and produced in accordance with the method described previously by the authors . The chosen substrate material was medical UHMW-PE for surgical implants produced in accordance with ISO 5834–1 2007 type 1, ISO 5834–2 2006 type 1 and ASTM F 648–07 type 1 standards (Ticona Engineering Polymers, Florence, USA; http://www.ticona.com). After compression moulding and ram extrusion, material was formed into stock shapes or solid blocks, as necessary for milling. Designing implants began with segmenting acquired DICOM data using Amira 5.4 (Visage Imaging GmbH, Germany) and creating 3D model of the patient’s facial skeleton. In the next stage with use of Geomagic Studio 11 (Geomagic Corp., Morrisville, USA), a mirrored model of the unaffected side was superimposed on model of fractured side. To ensure proper alignment analysis of symmetry was performed. The reference areas were undamaged upper rim and upper wall. Proper superimposition allowed creating superior (from undamaged mirrored orbit) and inferior (from model of fractured orbit) surfaces of implant. Subsequently, the 3D model was transferred to a CAD program SolidWorks (Dassault Systèmes SolidWorks Corp., Waltham, USA) and prepared for CNC milling. Each virtual implant was inspected and approved after necessary corrections by a maxillofacial surgeon (MK) before manufacturing. All UHMW-PE implants were produced on computer numerical controlled, 5-axis milling machine Speed Hawk 650 (OPS-Ingersoll Funkenerosion GmbH, Burbach, Germany) with accuracy of 0.05 mm.
Collected data were statistically analysed in Statgraphics Centurion XVI (STATPOINT TECHNOLOGIES, INC., Warrenton, Virginia, USA) (summary statistics, ANOVA, analysis of linear regression, t-test). Statistical significance was determined as p< 0.05.
Clinical classification of a fracture has a statistically significant impact on pre-operational BSVL results. Patients who suffered from isolated orbital wall fracture, or zygomato-orbital bone fracture, had a mean BSVL much lower (18.09%; 12.83%) than those who suffered from zygomatico-maxillo-orbital fractures or comminuted one-side fractures (36.96%; 34.0%). These statistically important differences between groups disappear in early and late post operational results, where there is no statistically significant difference in treatment results depending on primary clinical diagnosis.
There is a statistically significant relationship between ODI scale of injury and preoperative BSVL (p<0.001, correlation coefficient = 0.47), early postoperative BSVL (p<0.005, correlation coefficient = -0.42) or late postoperative BSVL (p<0.005, correlation coefficient = 0.42). It is not surprising that with the rise of the ODI scale of injury there is also a rise in diplopia value [BSVL] not only preoperatively but also postoperatively.
Although there is no correlation between patients’ age and BSVL preoperatively, there is a relatively weak but significant relationship between age and early postoperative BSVL (p<0.05, correlation coefficient = -0.29) or late postoperative BSVL (p=0.05, correlation coefficient = -0.27). The older the patient was, the decrease of BSVL postoperatively was poorer.
Within the last few years CAD and CAM in reconstruction of orbital fractures has become a commonly used technique [7, 15, 25, 26]. New materials [27–31], new methods of constructing patient-specific implants [8, 9, 25, 32–34] of fractured orbital walls are introduced each year. Each of these innovations has the aim to produce quicker, cheaper and better fitted implants. Most common materials used for orbital wall reconstruction worldwide are autologous bone grafts [30, 34–36], porous polyethylene [37–41], and polydioxanone (PDS) [28, 30, 42]. Titanium mesh has already proven its usefulness in reconstructing orbital walls [35, 43]. Alternative materials for orbital walls reconstruction such as hydroxyapatite, porous polyethylene  or polylactide provide as good treatment results as titanium mesh . Ultra high molecular weight polyethylene used in this study has proven to be as useful in reconstructing orbital walls as pre-bent titanium mesh. No statistical differences in post operational results depending gender, age or primary clinical diagnosis show that polymers may be broadly used instead of titanium mesh. An ability to create implants with nearly any thickness due to CNC milling seems to be helpful in reconstructing heavily destroyed orbits and especially in delayed surgery cases. It is possible to adjust implant thickness to fully recreate orbital walls. Costs of producing ultra-high molecular weight polyethylene implants are similar to using titanium mesh, decreased of a cost of 3D printed acrylic model of an orbit. Compared to porous polyethylene [30, 41] UHMW-PE implants should probably have lower a risk of infection due to their solid structure. Therefore an elevated risk of deep implant infection before completing vascularization should not occur as there is no vascular ingrowth into implant. In our study there was no case of postoperational implant infection but further studies concerning this issue are required.
A major drawback of polyethylene implants is their radiolucency. It is required to use radio-opaque agent combined with the polyethylene to make implants visible on computed tomography for post-operational control of implant position.
This study of 6 months functional result assessment of pre-bent individual implants and CNC milled ultra-high molecular weight polyethylene of the orbital wall has shown it to be a predictable reconstruction method. UHMW-PE implant seems to be as good as pre-bent titanium mesh.
Study was supported by grant: 502-03/5-138-03/502-54-084, 503/5-061-02/503-01.
